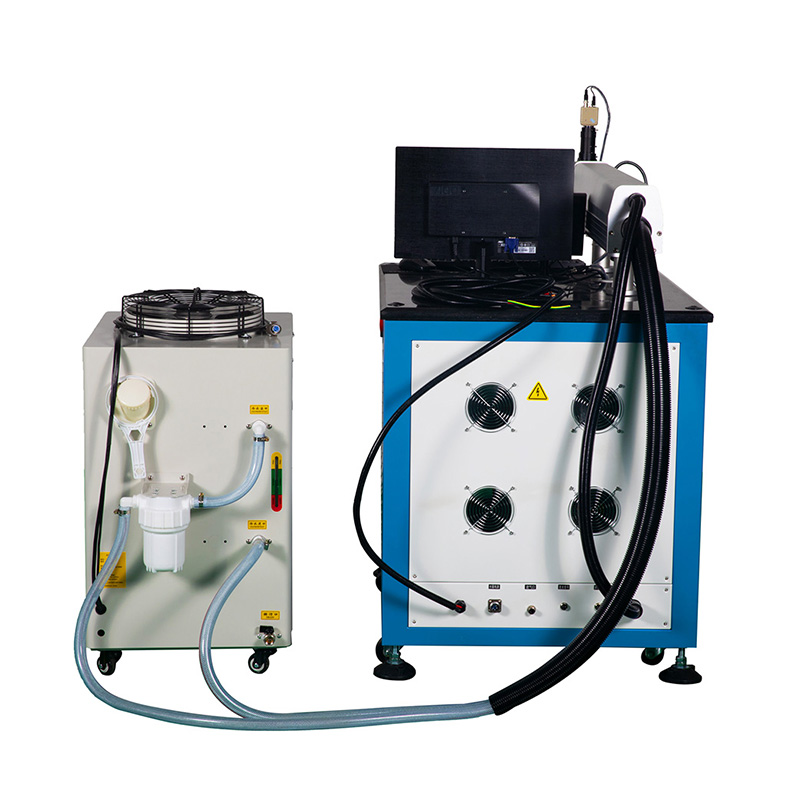

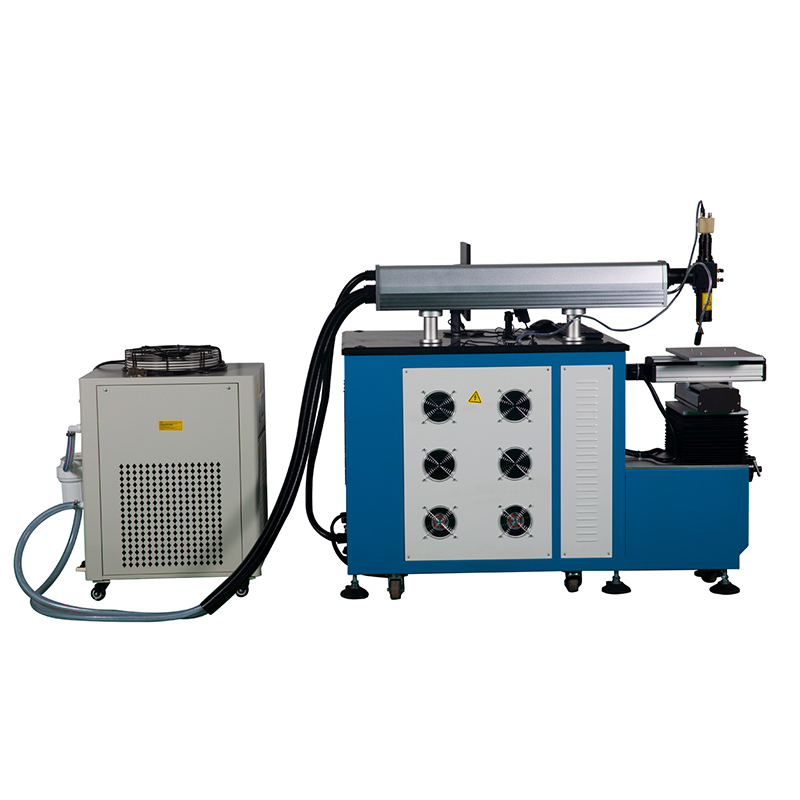

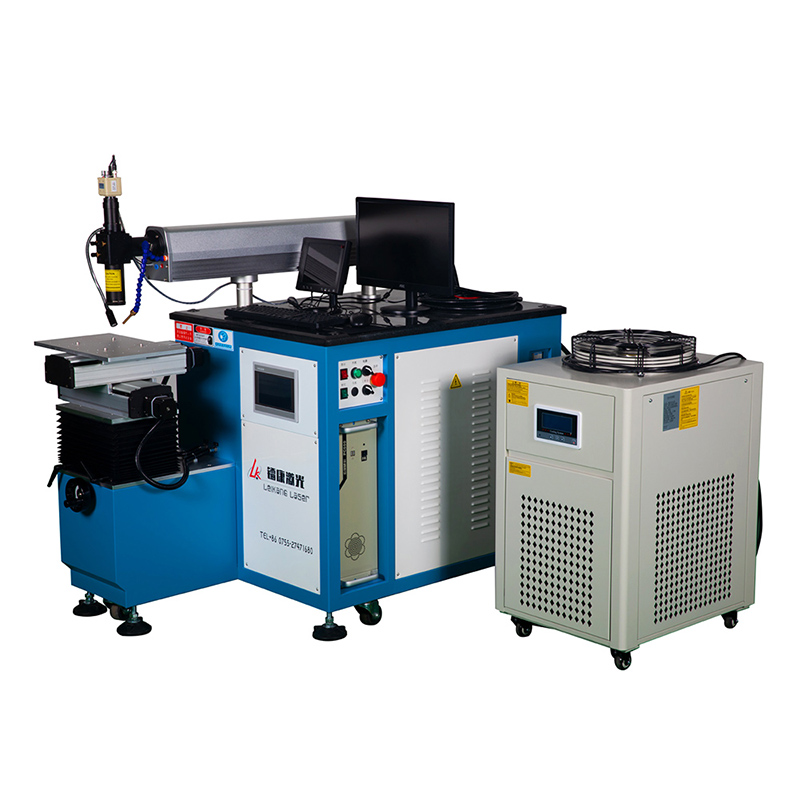

Video Link Model :LK-ZW
Power options :200W/300W/400W/500W/600W
3axis ~4 axis automatic welding , aiming at complex plane straight line, arc and any track welding
High welding accuracy ,high welding speed and good effect
24 Month maintenance
Fast delivery
24 Hour treatment
Production video
Feature :
1.Machine system
Adopt CADDSP welding software could be programming welding process on machine system to achieve automatic welding and suit for batch product welding
2.High quality cavity
Adopted UK imported ceramic condenser cavity, corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.
3.Working table
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
4.Visual system
|
Model |
LK-ZW |
|
Max. Laser Power |
200W/300W/400W/500W/600W |
|
Laser Type |
YAG |
|
Laser Wavelength |
1064um |
|
(Pulse-Width (ms ) |
0.5ms-20ms |
|
Pulse Energy |
100J/120J |
|
Pulse Frequency |
0-50HZ |
|
Laser Welding Depth |
0.1mm-2mm |
|
Spotlight Cavity Reflector |
Metal Cavity |
|
Sighting Positioning System |
Red light ,HD-CCD camera |
|
Aim Operation |
Round Point Cursor |
|
Adjusting range of light spot |
0.6-3.0mm |
|
Cooling system |
Built-in Water cooling |
|
Integrity Power |
5.5kw~8KW |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
Machine: 730*1380*885mm |
|
Package size |
Machine: 1700*930*1490mm Chiller: 810*610*1120mm |
|
Machine net weight |
Machine :360 chiller :93kgs |
|
Machine gross weight |
Machine :372kgs chiller102kgs |
|
1 pcs goggles |
3pcs protective lends |
|
1 pcs water cable |
1 pcs gas cable |
