Robot Laser Welding Machine, Robot Laser Welding Machine System, Continuous Robot Laser Welding Machine

Model:LK-GQW

Power Options: 1000W/1500W/2000W/3000W/4000W/6000W

The machine can weld materials: metal, aluminum, stainless steel, cooper, titanium........

Lightweight shape, ergonomic design, advanced structure and reliable performance

High Performance Harmonic Reducer

24 Month maintenance

Fast delivery

24 Hour treatment

characteristic :

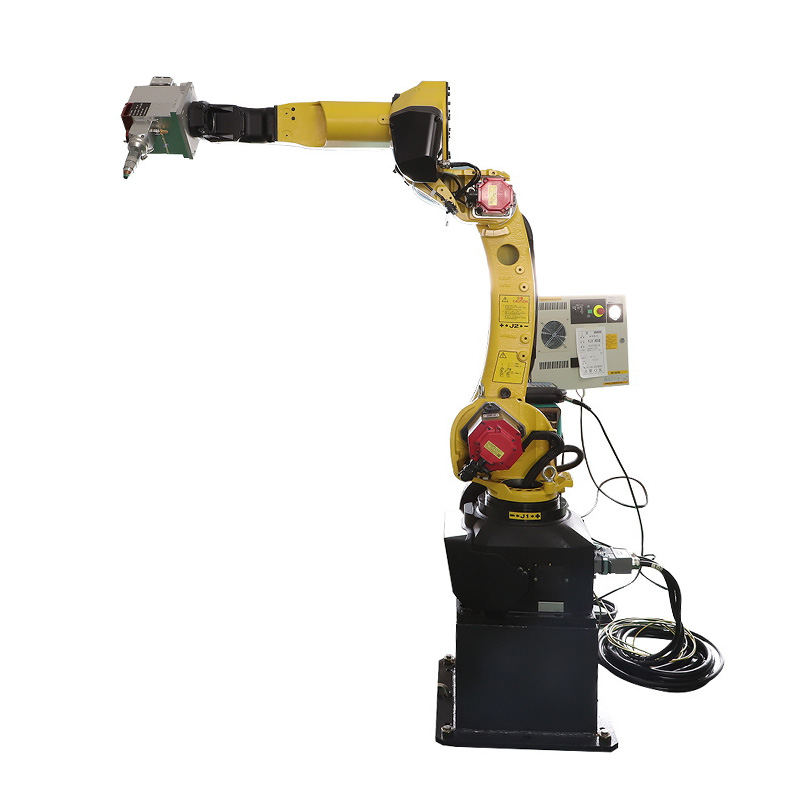

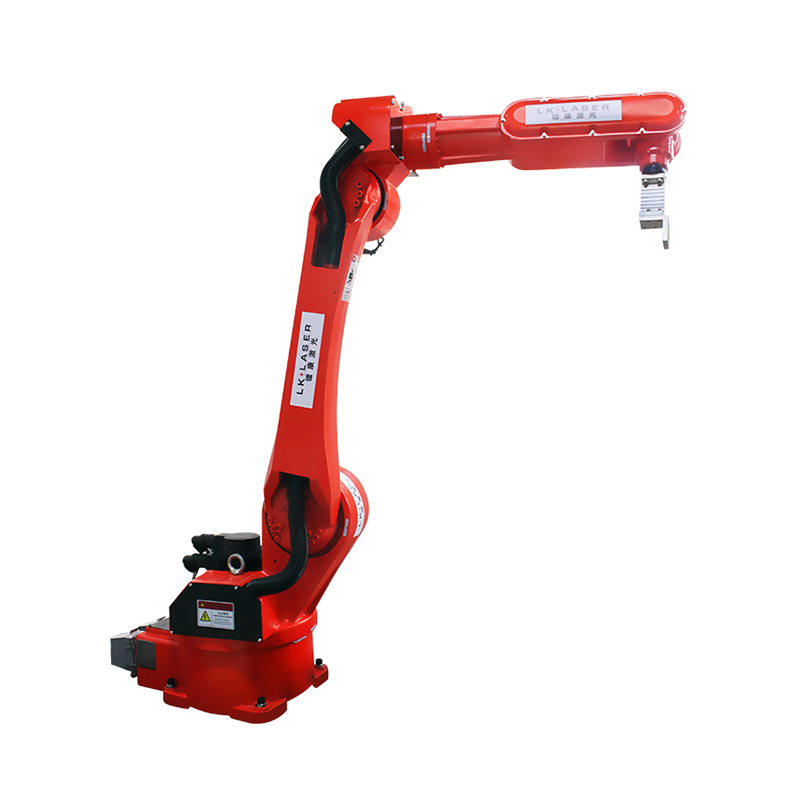

1. Robot arm

Equipped with a 6-axis robot, the machine can rotate 360 degrees to weld at any angle to meet different welding position requirements.

2. Wobble head

Wobble welding head with percussion control and digital display on gun head with safety lock.

3. High efficiency

The portable laser welding machine has high welding efficiency, is compact and simple to operate, greatly improving work efficiency.

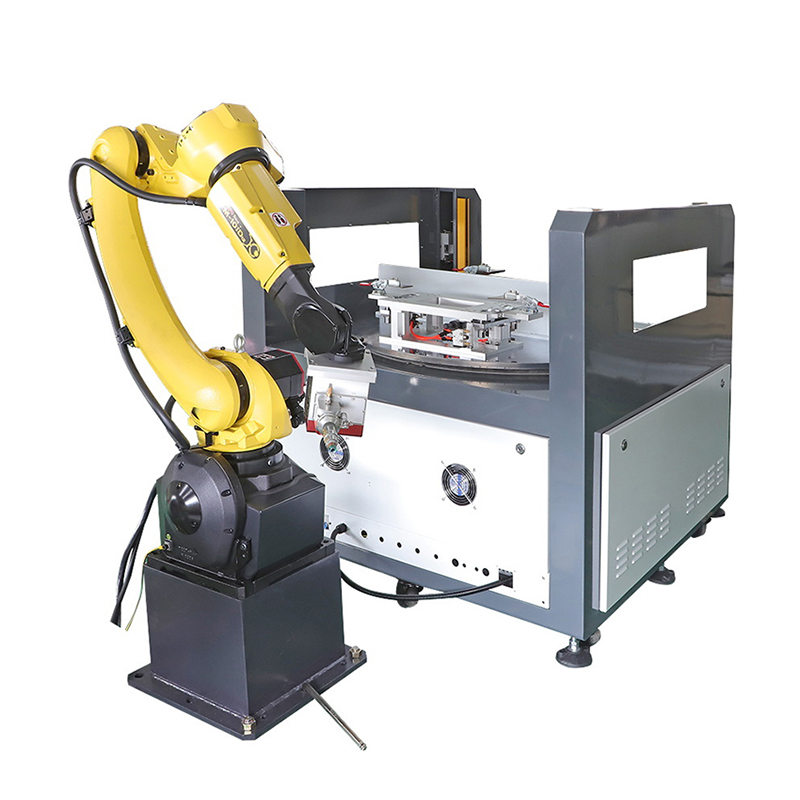

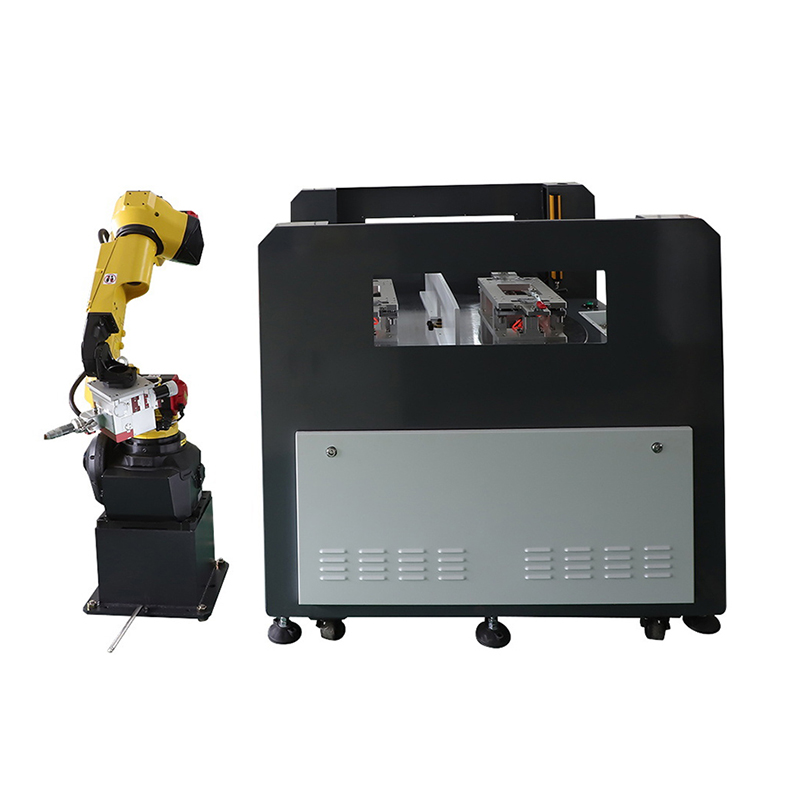

4. Automatic working table

We can make custom fixtures according to different welding requests and can speed up your work, increasing your production capacity.

Model	LK-GQW
Max. Laser Power	1000W/1500W/2000W/3000W/4000W/6000W
Laser Type	Optical fiber
Laser Wavelength	1064um
Laser Welding Depth	0.5mm-5mm
Sighting Positioning System	Red light
Cooling system	internal Water cooling
Integrity Power	10~15kw
Power Supply	AC220VAC+-15%/50HZ/25A
Lifetime	3,000,000 times
Machine size	Subject to actual project
Package size	Subject to actual project
Machine net weight	560kgs
Machine gross weight	593kgs

1 pcs goggles	3pcs protective lends
3 pcs water cable	1 pcs gas cable
