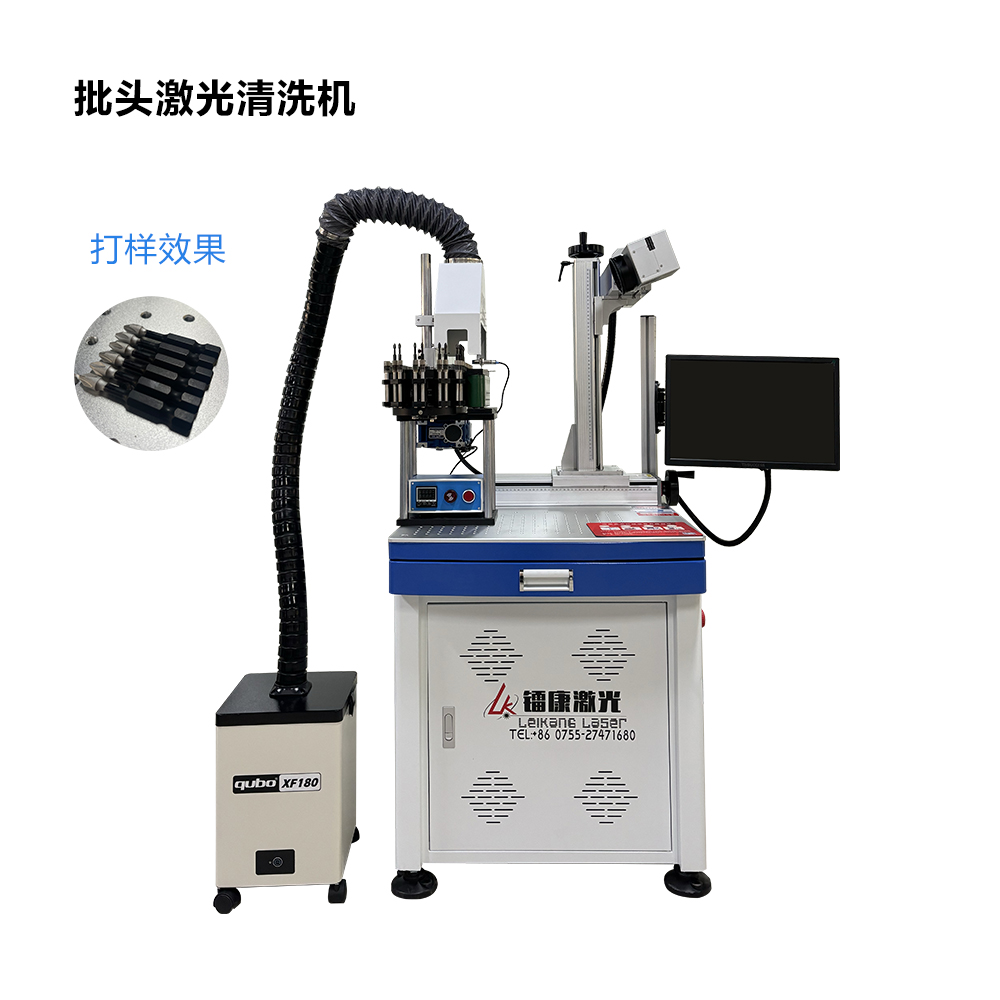

Pulsed fiber laser decoating machine

Laser Machine Coating Removal for Screwdriver Bits

Model:LK-IP customization version
Power Options: 20W/30W/50W/100W
Laser coating removal for screwdriver bits ther stations, greatly improving production efficiency.
screwdriver bit laser marking machine coating peeling on bits
Laser decoating is a non-contact pulsed fiber laser ablation process, used to selectively remove functional hard coating (TiN / TiCN / AlTiN /nitride coating) on screwdriver bit surface, without damaging the S2 steel substrate, hardness and tip geometry

24 Month maintenance

Fast delivery

24 Hour treatment

Product Details

Description

Technician Specification

Packing List

Pulsed laser beam is absorbed by coating layer, coating vaporizes /sublimates and peels off by thermal shock. The S2 steel substrate reflects laser energy, properly tuned parameters keep substrate temperature below damage threshold, no burning, melting or hardness reduction. Fume extraction system captures coating vapor & fine dust during processing.

Laser type: Nanosecond pulsed fiber laser, 1064nm
Power range: 100W~200W
Scan speed, pulse frequency, line overlap: adjustable according to coating thickness
Fixture: Rotating positioning jig for screwdriver bits
Auxiliary: Dust & fume extraction unit
Multi-pass low energy scanning, avoid high single-pass energy which may cause thermal damage to substrate and microcracks at the tip

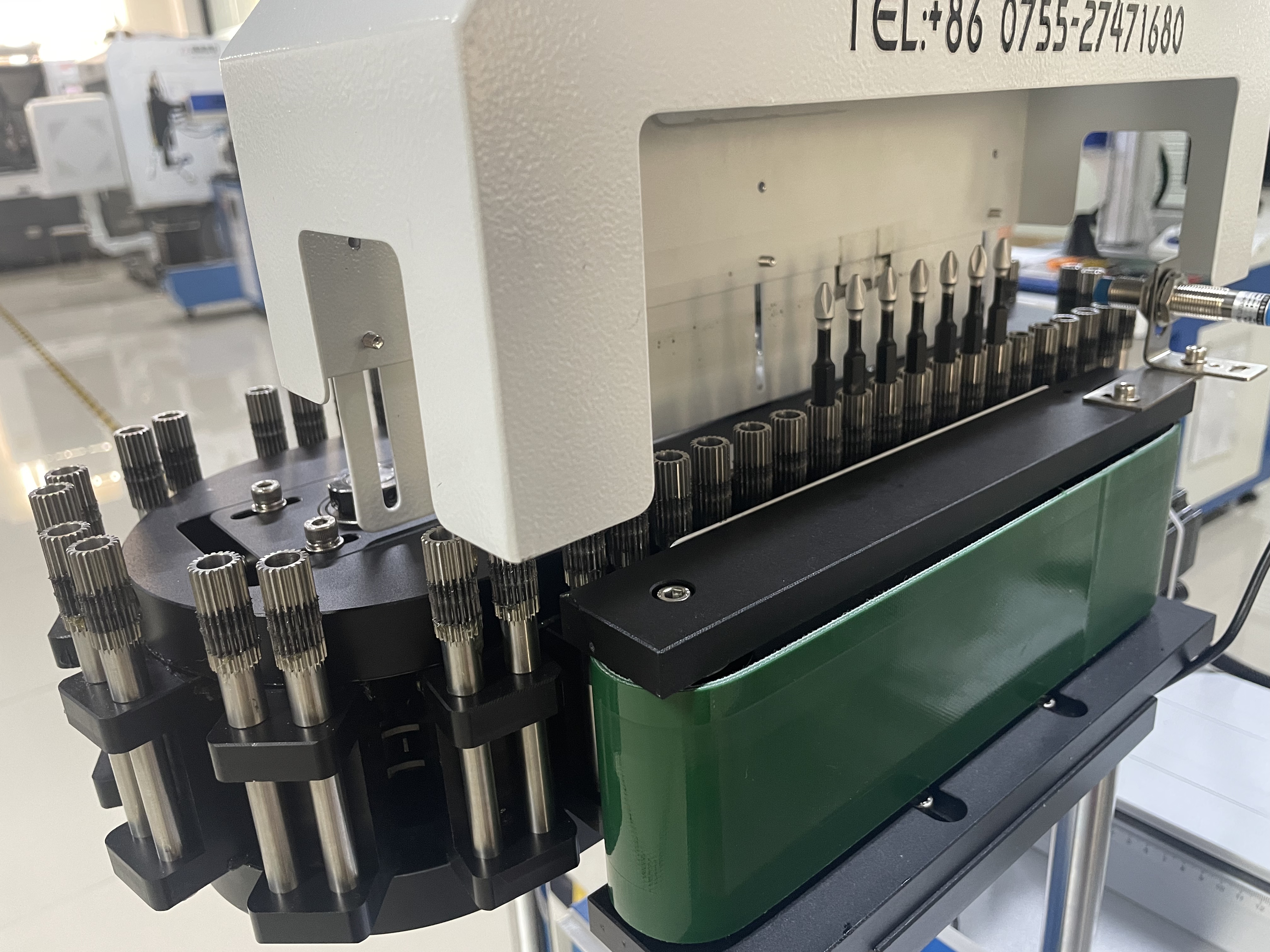

Laser Decoating for Screwdriver Bits, Precise & Non-damaging

More Details of Laser Coating Removal Please See: Laser cleaning coating parts

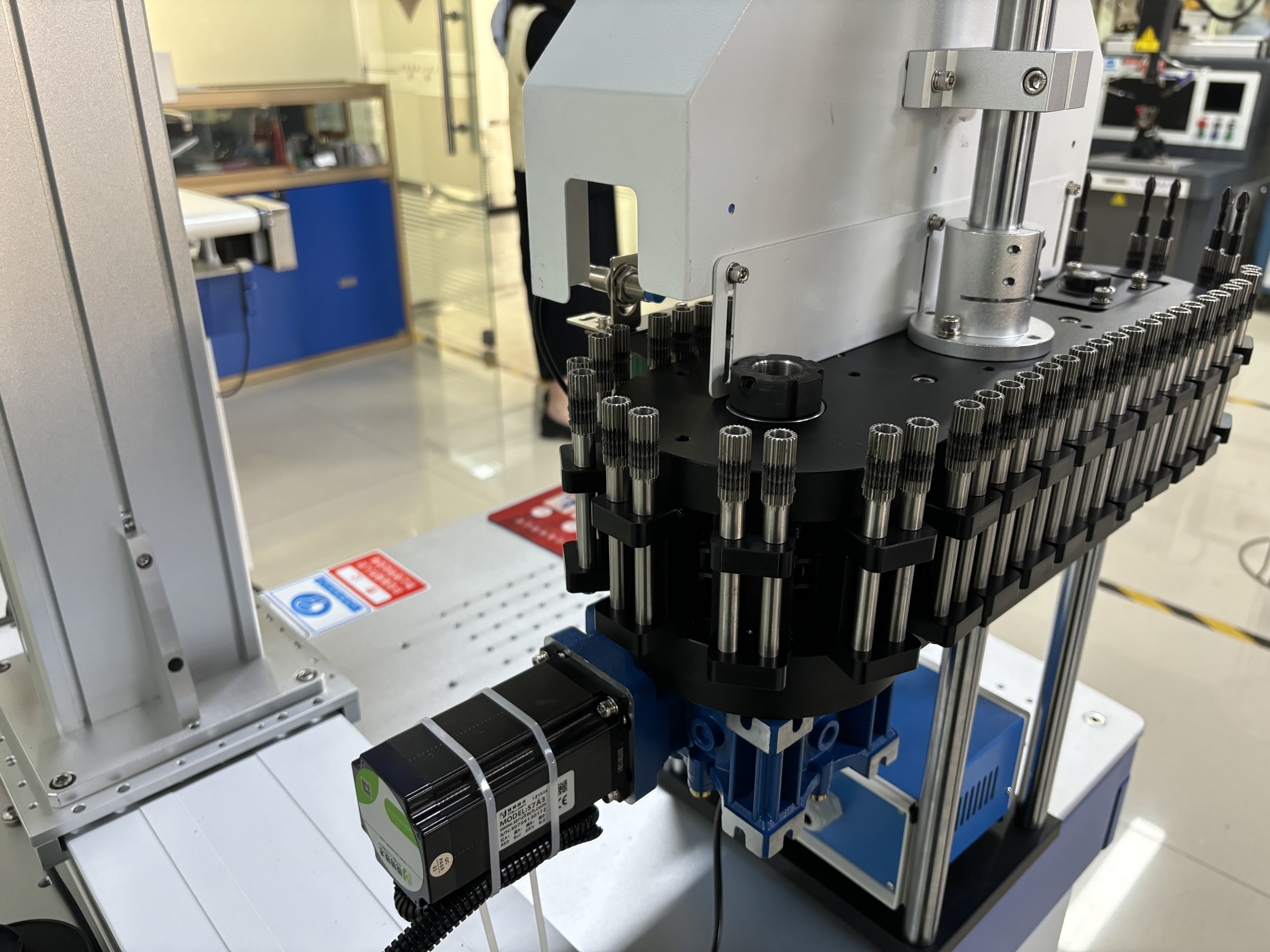

Rotary fixture with low runout, clamp screwbits . prevents heat accumulation and tip microcracks during laser decoating.
rotary fixture for laser marking machine

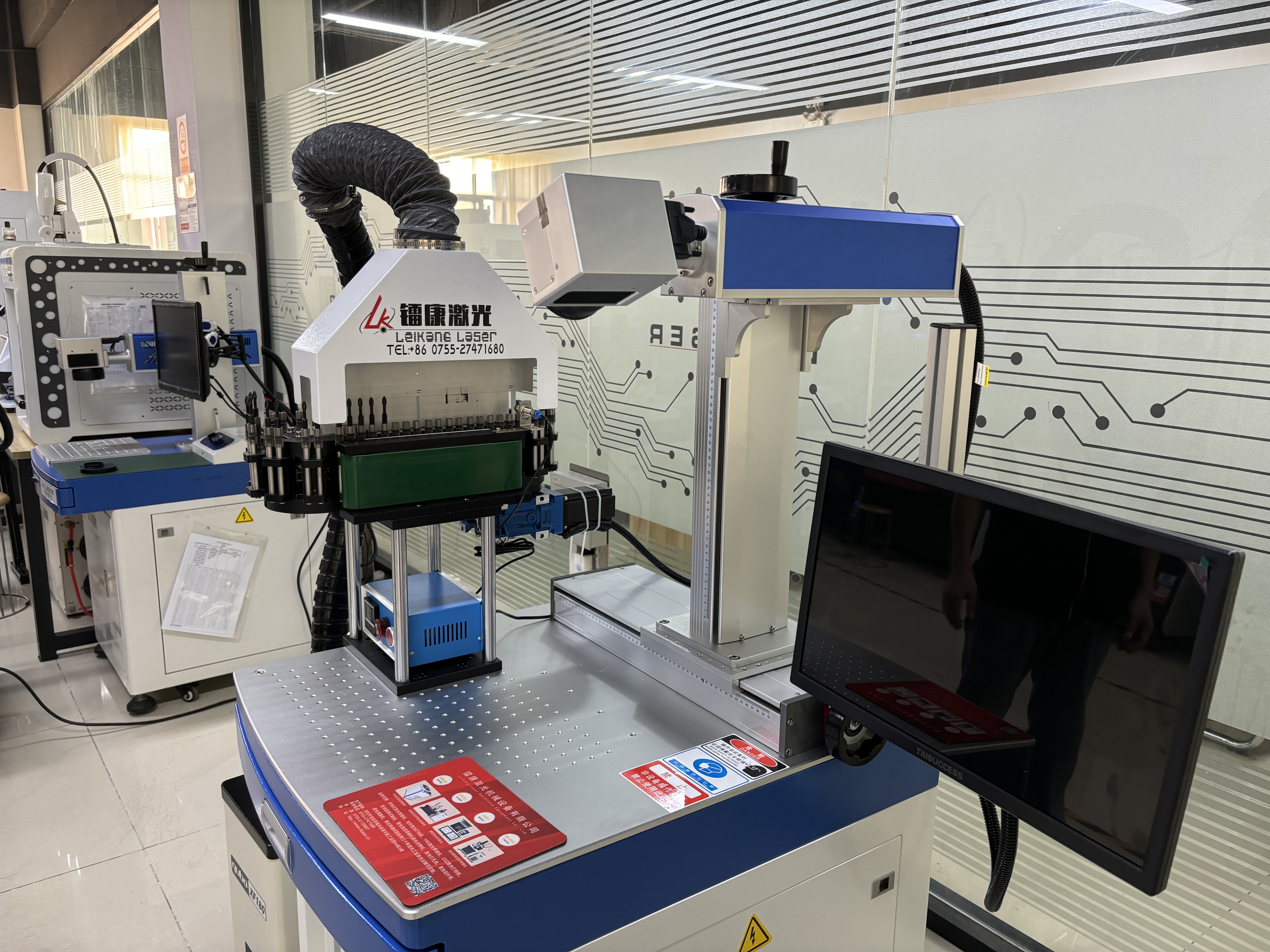

Interchangeable positioning sleeves accommodate screwdriver bits of various specifications (PH/Torx, different overall lengths and shank lengths) for quick model changeover. The machine is equipped with a fume purifier to prevent dust adhesion on workpieces and avoid compromised cleaning results.
laser machine with fume purifier

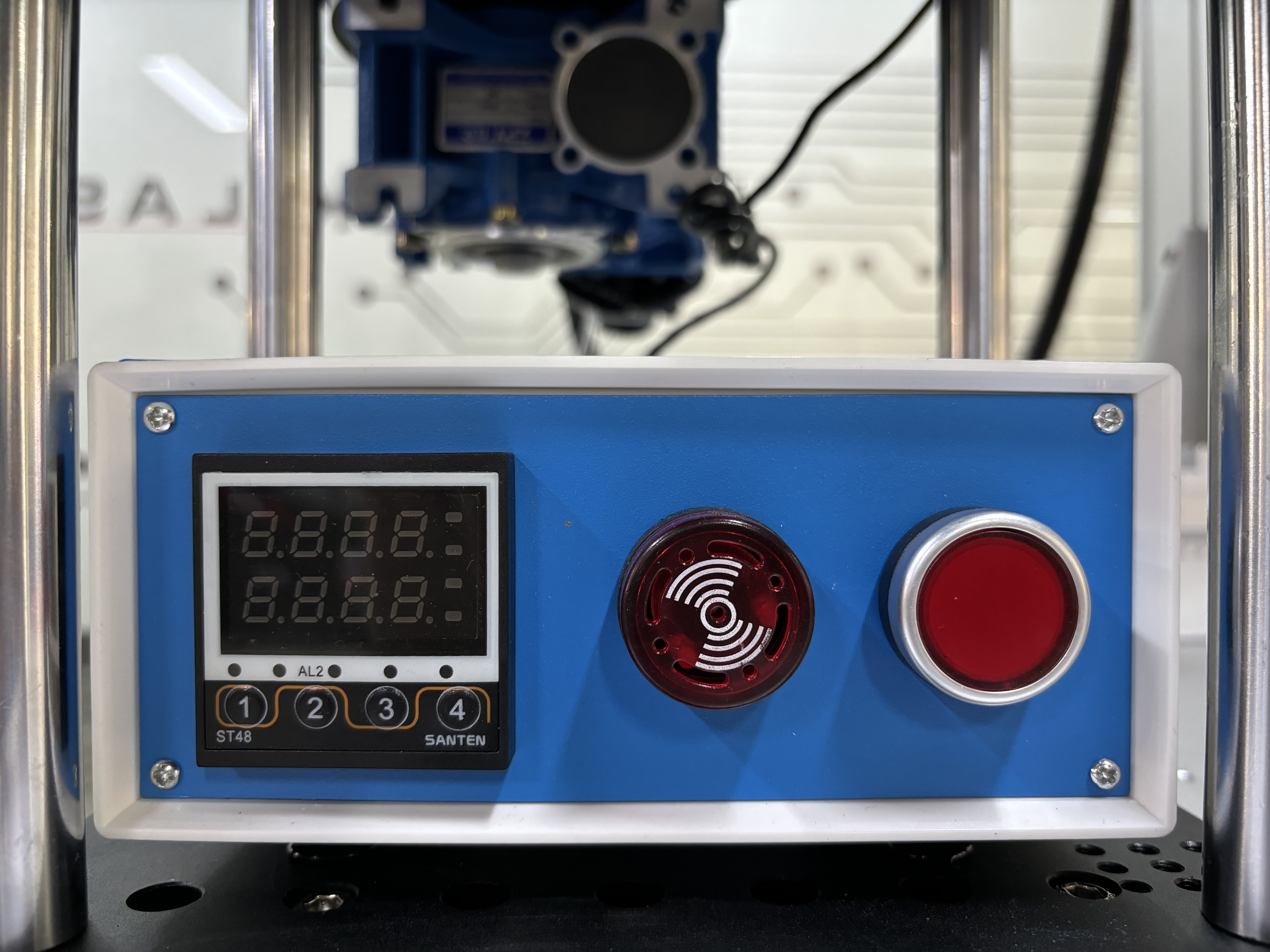

The cleaning machine supports automatic part counting to record production quantity and facilitate batch output statistics.
automatic counting device

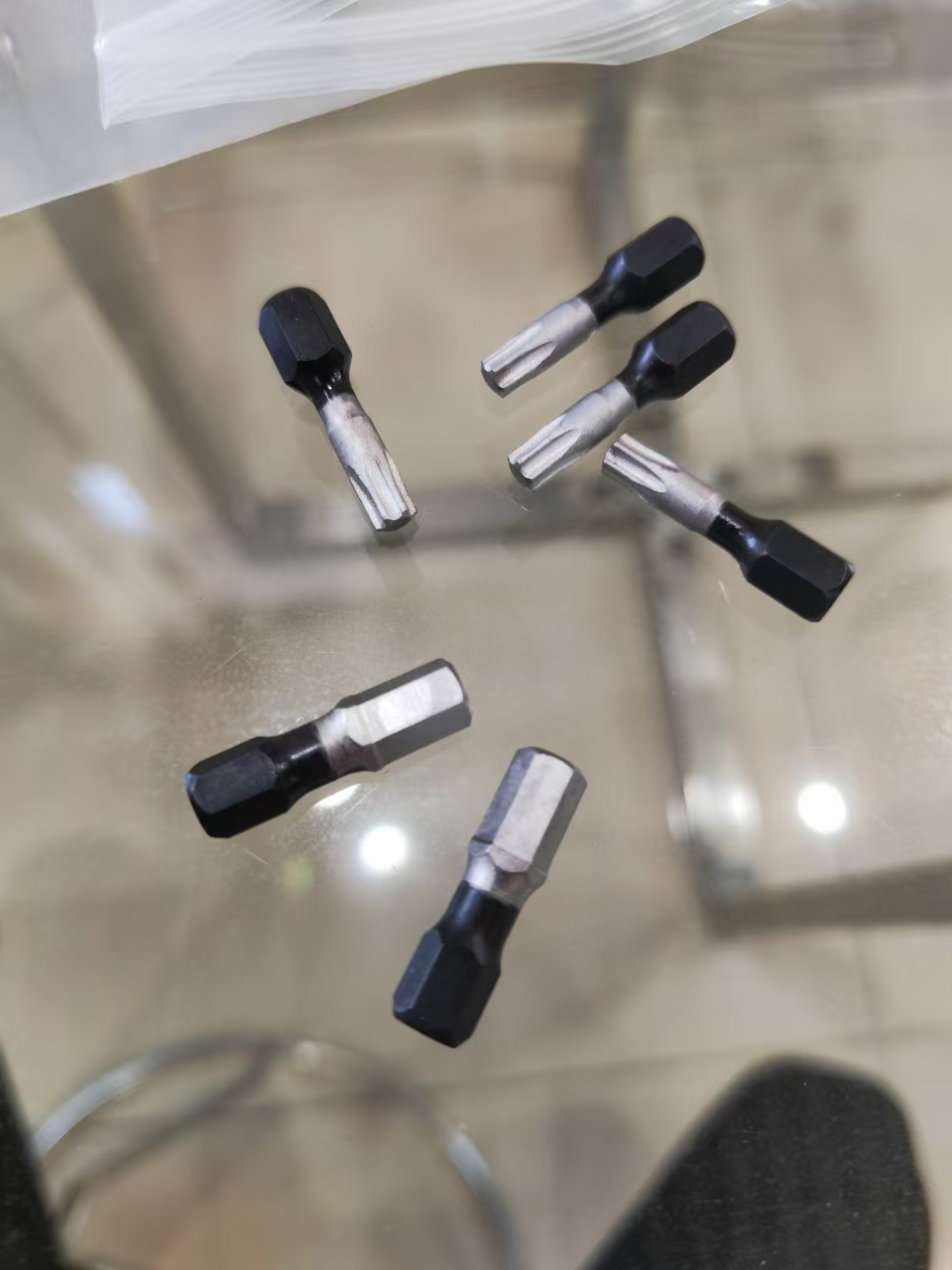

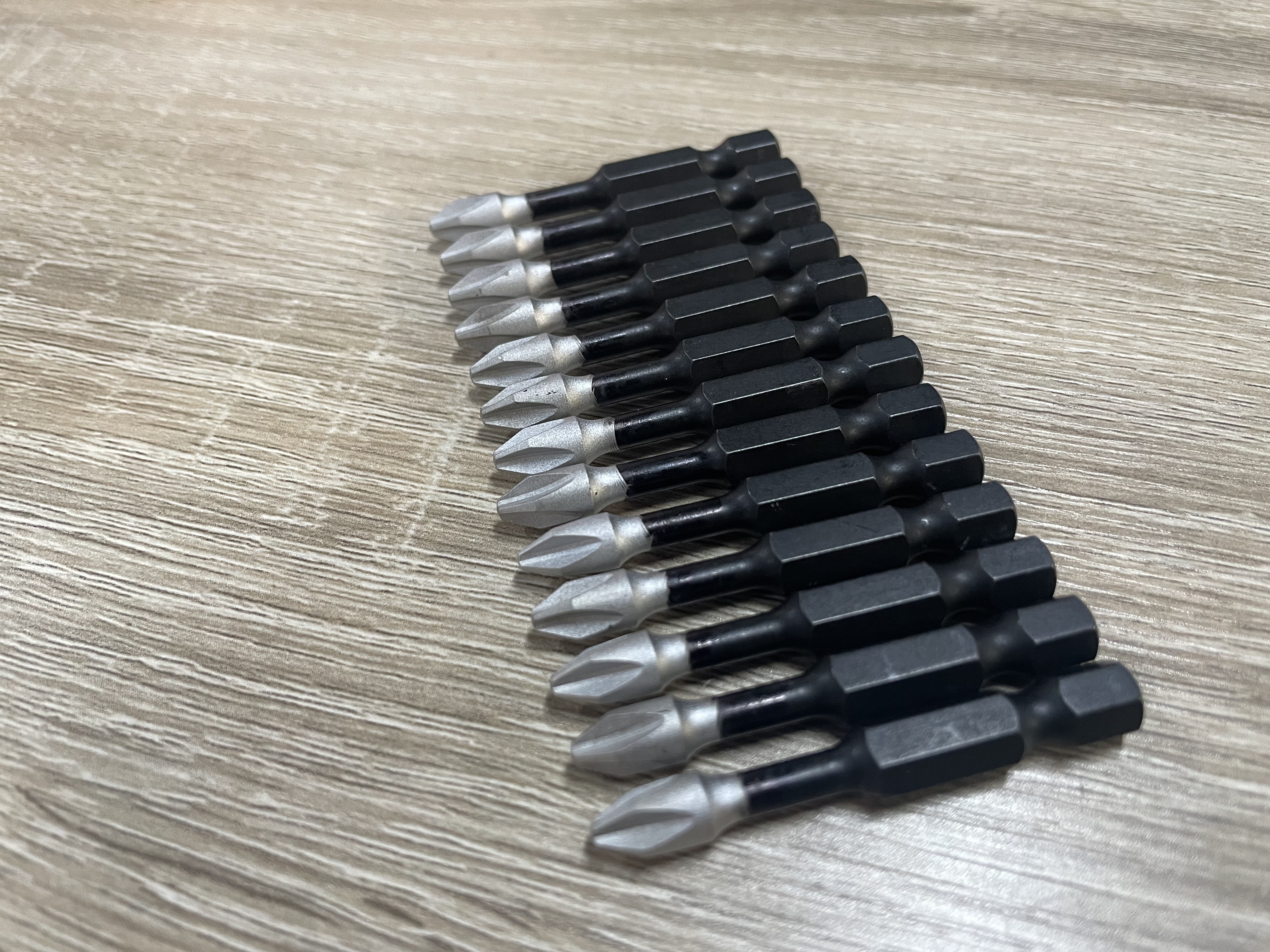

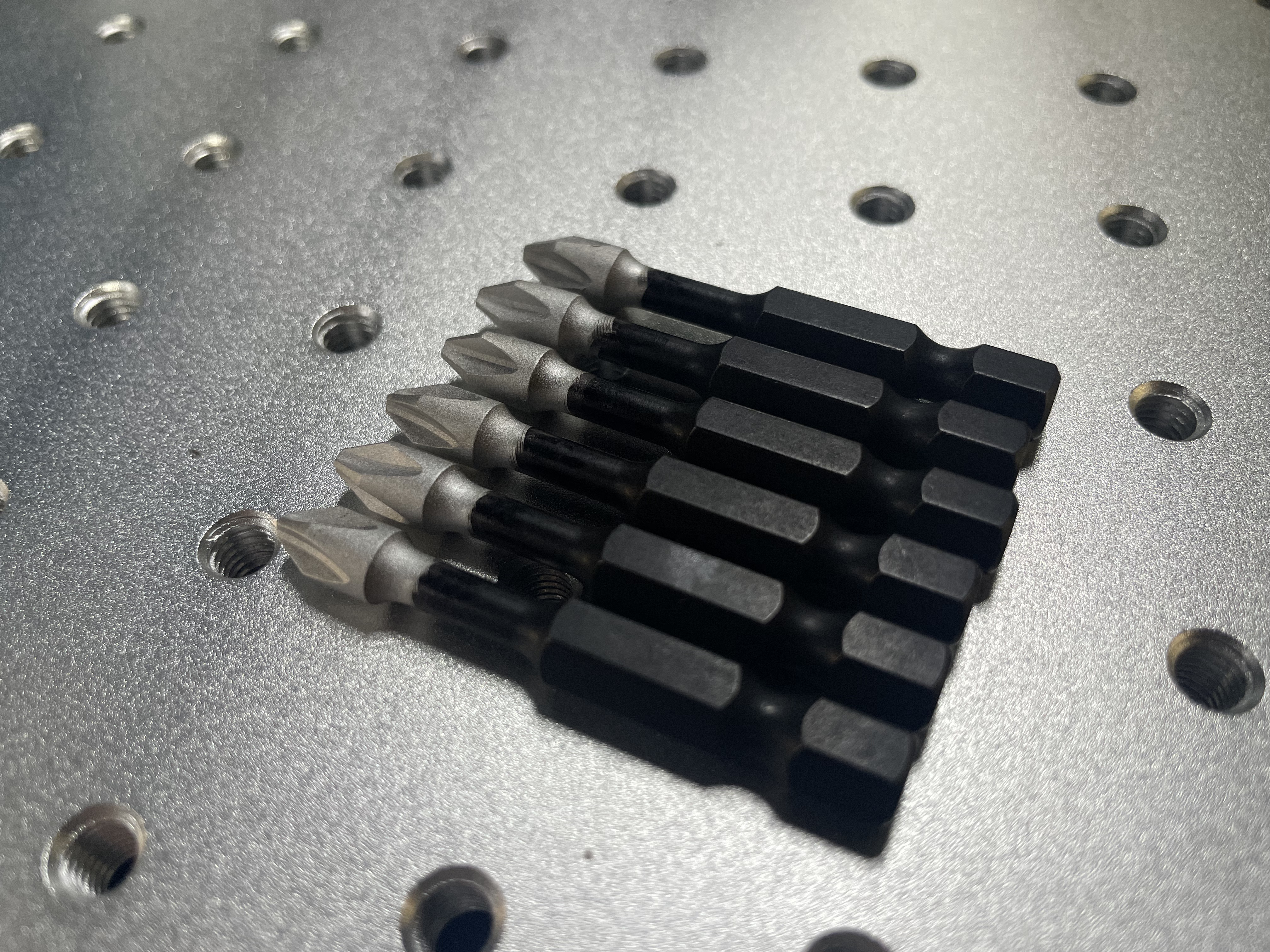

Precise localized coating removal, no substrate ablation or hardness loss
laser cleaning screw-bits
