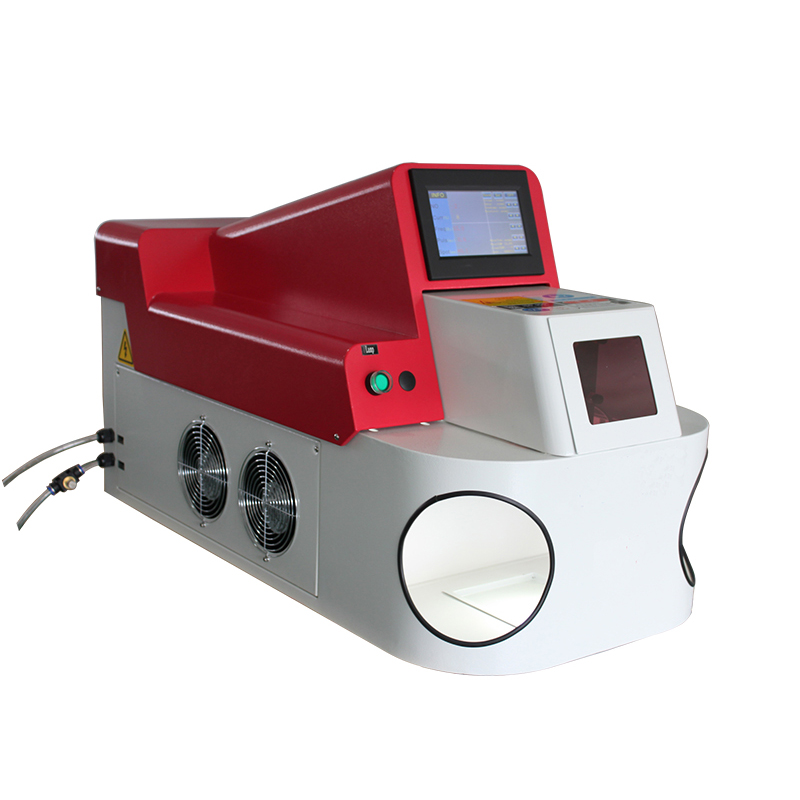

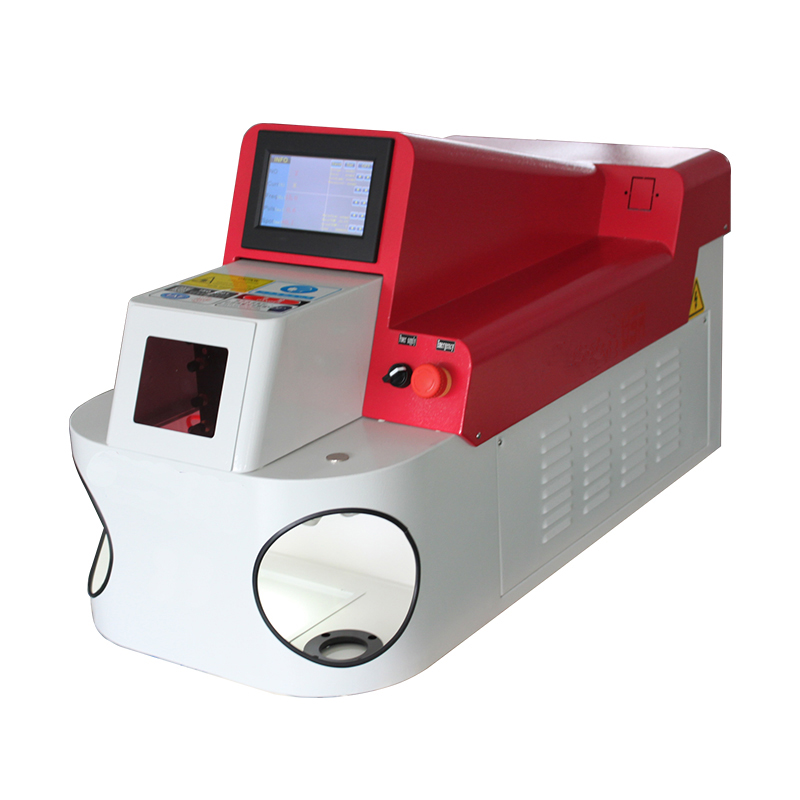

VIDEO LINK Model :LK-SWC
Power options : 100W /200W
Machine could welding material: gold ,silver, aluminum , platinum ,copper.....
Desktop type compact design is very convenient for using in a small space
specially used for spot welding, perforating, repairing, re- tipping and re-sizing of gold/silver/titanium jewelry and small accessories. etc.
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.Machine system
Adopt HD -CCD colorful visual system & LCD screen ,which optional for our customer.software is available in Chinese and English versions, and the language type can be arbitrarily specified.
2.Ergonomic design
High Complete machine ergonomic design further fits jewelry industry of which the products are meticulous and artistic and property is stable and it also meets the needs of long time continuous operation.
3.High brightness
Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp and could check the micro welding position on LCD screen
Machine could adjust the welding parameter via inside worktable joystick and outside LCD screen
Easy to operation and multi-function which meet different working request
|
Model |
LK-SWC |
|
Max.LaserPower |
100W/200W |
|
Laser Type |
YAG |
|
Laser Wavelength |
1064um |
|
(Pulse-Width (ms ) |
0.5ms-20ms |
|
Pulse Energy |
100J/120J |
|
Pulse Frequency |
0-50HZ |
|
Laser Welding Depth |
0.1mm-2mm |
|
Spotlight Cavity Reflector |
Metal Cavity |
|
Sighting Positioning System |
Red light ,HD-CCD camera |
|
Aim Operation |
Round Point Cursor |
|
Adjusting range of light spot |
0.6-3.0mm |
|
Cooling system |
Built-in Water cooling |
|
Integrity Power |
5.5kw |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
900*490*590mm |
|
Package size |
990*590*790mm |
|
Machine net weight |
104kgs |
|
Machine gross weight |
114kgs |
|
1 pcs goggles |
3pcs protective lends |
|
1 pcs water cable |
1 pcs gas cable |
