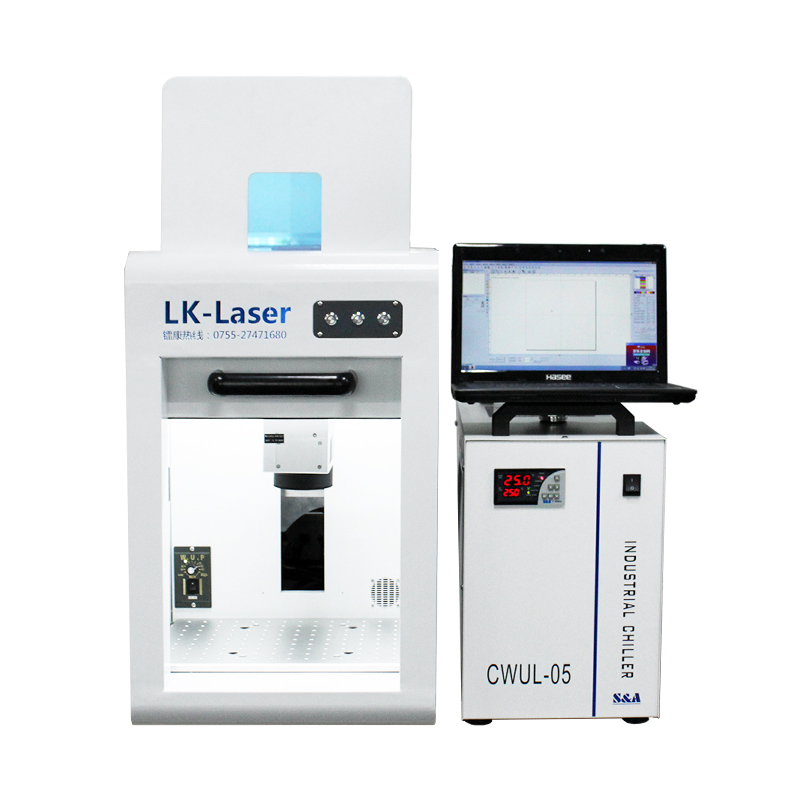

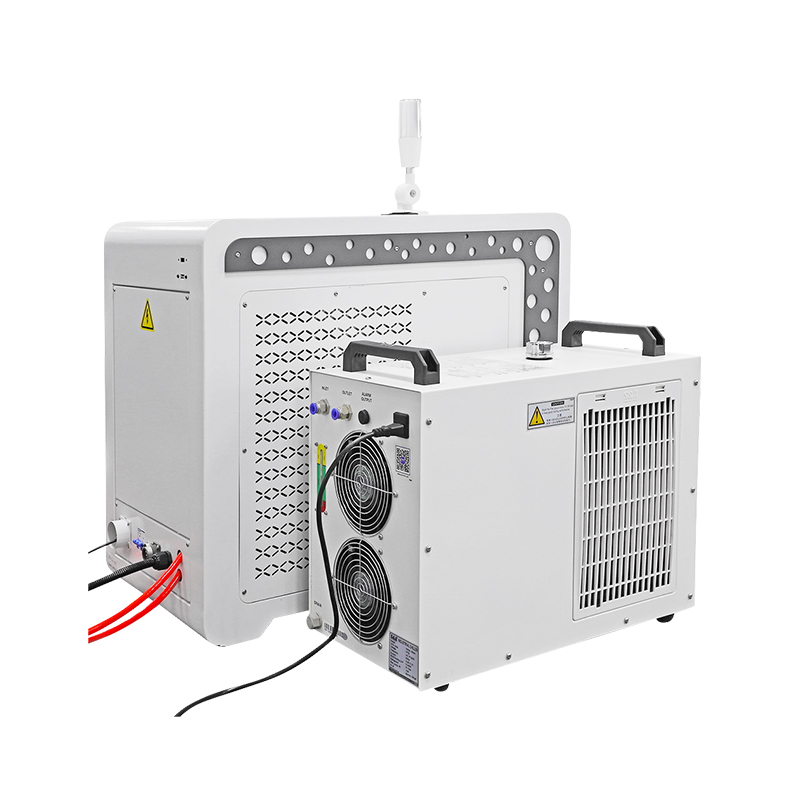

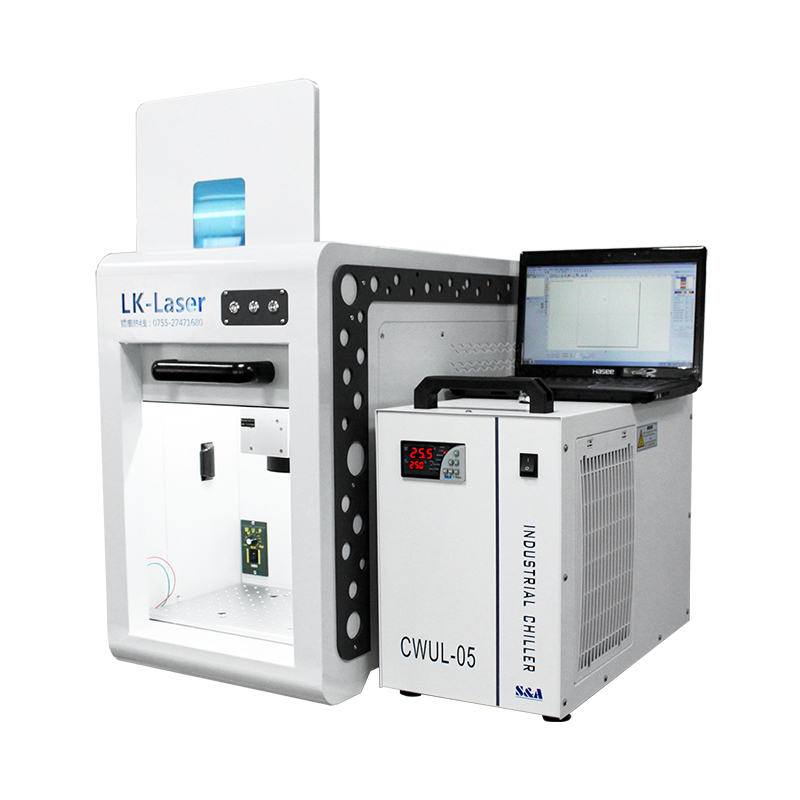

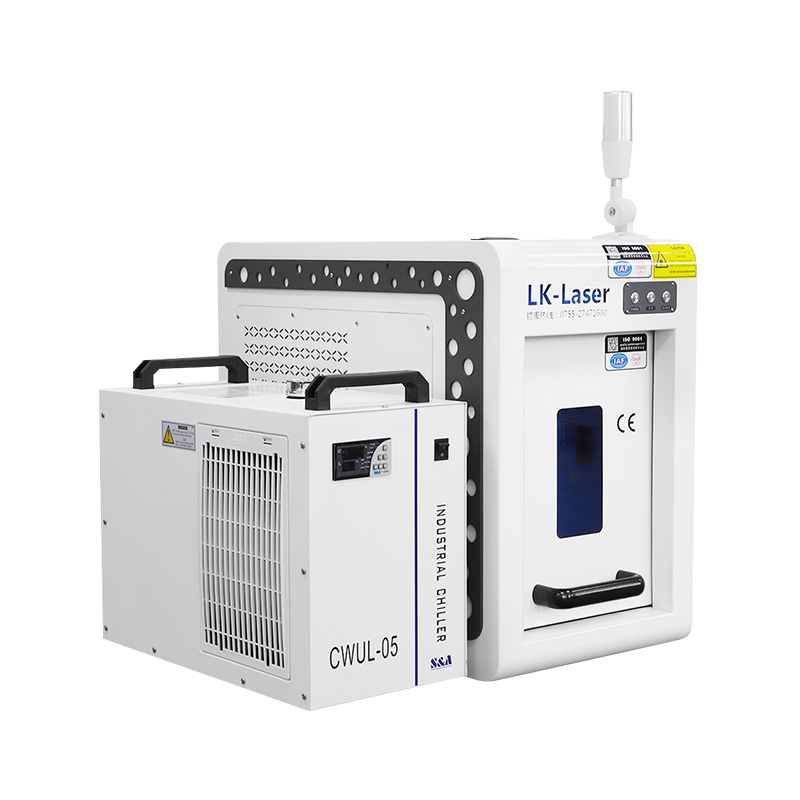

Enlcosed UV Laser Marking Machine

Video Link
Model :LK-UV

Power options : 3W /5W/ 10W

Suit for marking metal ,plastic,glasses marking ,stainless steel, hard alloy, lens, bottles ,ABS, epoxy resin, painted coated products, ceramics, etc.

Lower heating affect with high precision marking effect

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List

enclosed laser marking machine
enclosed fiber laser marking machine (2)
uv laser engraving machine
3w uv laser marking machine





Feature :

1.Working method

UV laser marking machine is a cold working method,Its processing accuracy is high in visible light and infrared band lasers.

The heat affected zone of processing is relatively small and can be marked very meticulous with special materials



2.Lower consume

UV laser marking machines do not have consumables accessories, and the cost of use and maintenance are low.



3.Lower heating affected
UV laser marking machine has small heat affected zone, avoiding damage to processed materials and high yield



4.Good stability
High-configuration violet laser with excellent performance, uniform laser power density, fine spot and stable output power



5.High practicality

Compared with the general laser marking machine, the UV laser marking machine has a very small spot size, which makes the material heat-receiving area smaller and marking material not susceptible to heat deformation; Machine lower power makes the marking is more precise, suitable for ultra-fine marking environment, food and medicine packaging, Glass division, electronic components, metal jewelry marking, etc.

Laser power

3W/5W/10W

Laser Type

UV laser

Focus mode

Manual

Effective working area

110*110mm

Marking depth

0.01-0.03mm

Line width

0.01-0.05mm

Marking Speed

12000 mm/s

Repeatability

0.001mm

Marking accuracy

0.001mm

Marking software

EZCAD2

Marking content

Image processing,Common vector images are supported. (ai, dxf, dst, plt…)

Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)

Serial number , QR code, Bar code .......

Machine size

Machine :760*685*980mm ,chiller :345*480*560mm

Package size

1210*810*1630mm

Machine net weight

150KGS

Machine gross weight

160KGS

4 Mounting screw

2 Positioning strip

1 Protective goggles

1 Pedal

1 Ruler

1 tool kit

1 U disk

1 box aluminum plate

1 Power cable

Machine
